JOUANEL SEAMING MACHINE

Description

JOUANEL SEAMING MACHINE

Light seamer for standing seams 1st and 2nd seams

STANDARD EQUIPMENT

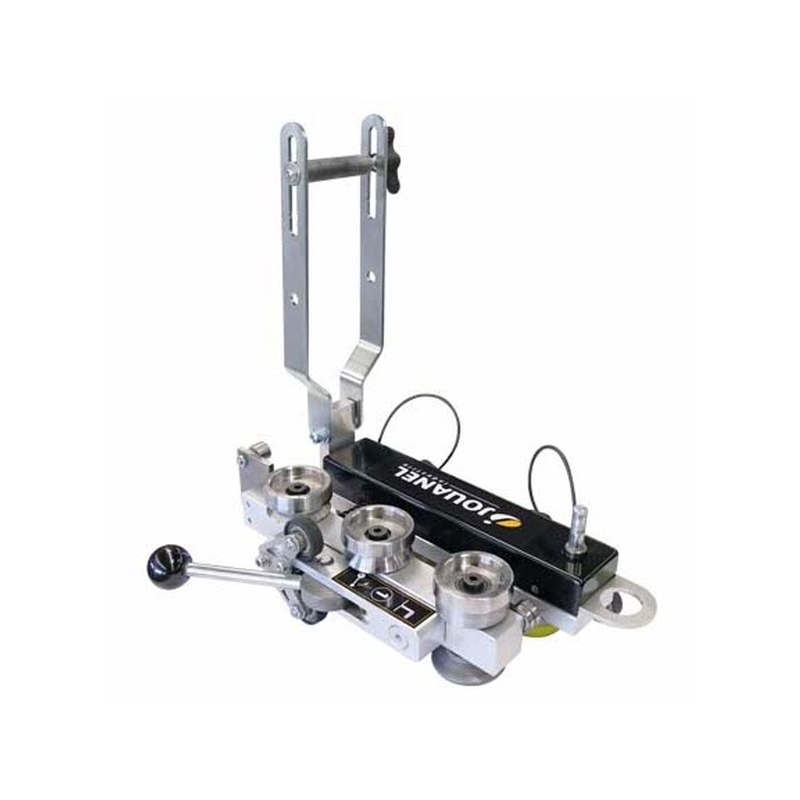

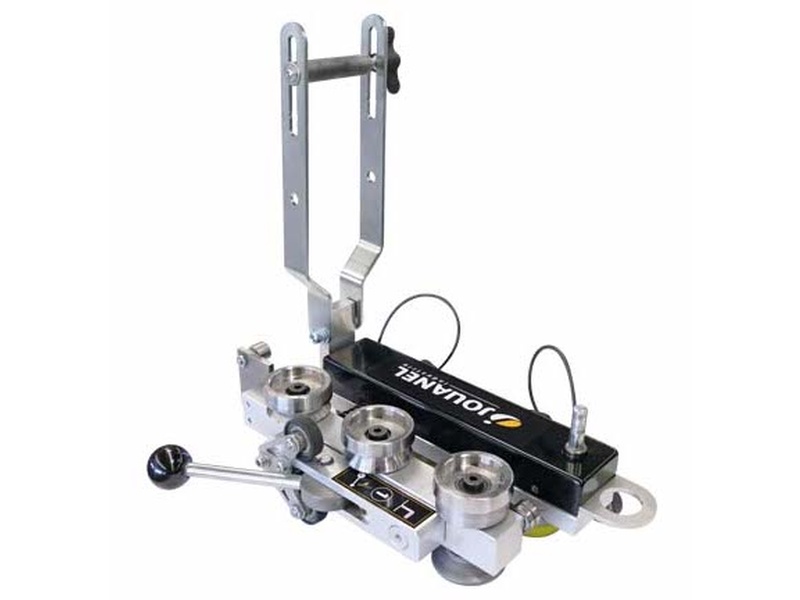

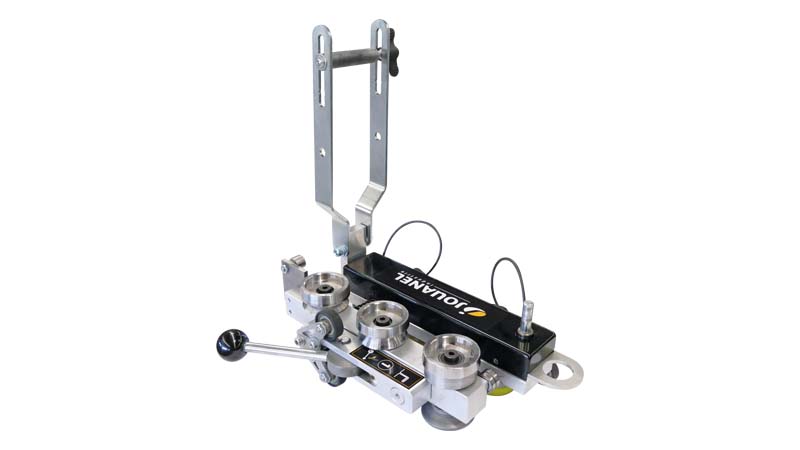

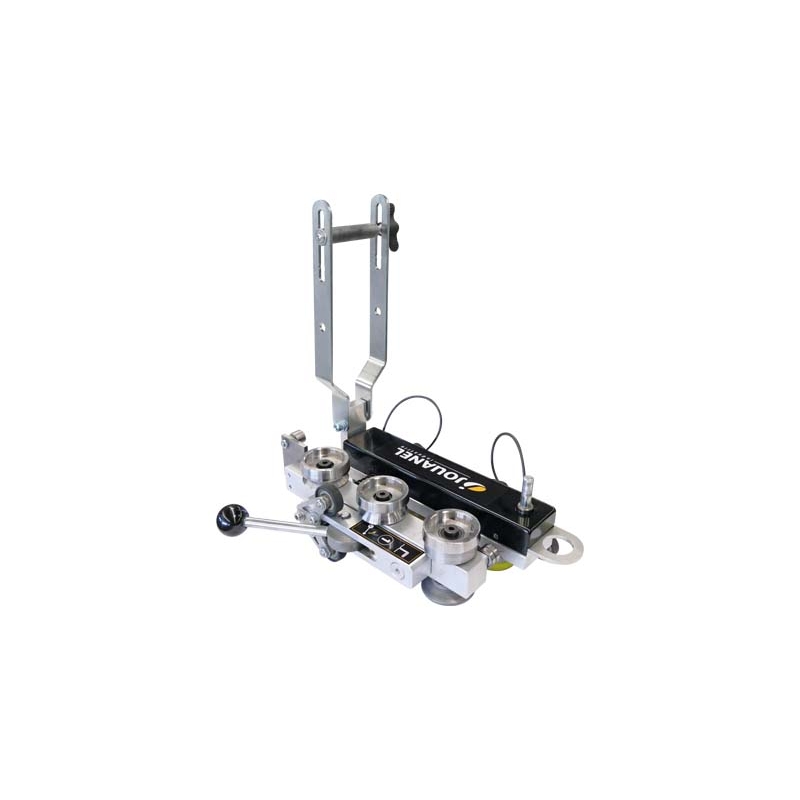

• Seaming unit for fold No. 1 and fold No. 2, reversible
• Quick-lock / Unlock lever

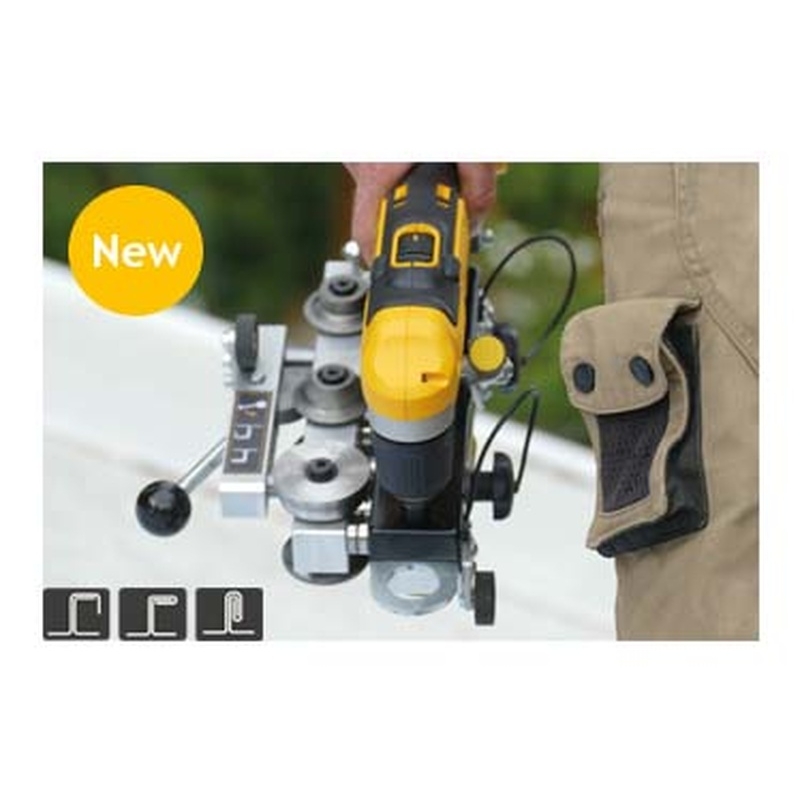

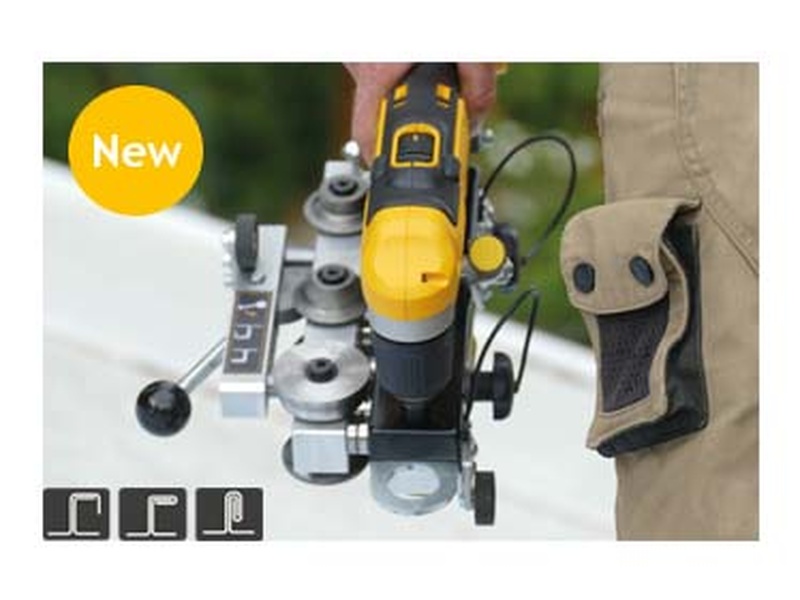

• Fold-out mount for screw-gun (with no power tool, the system folds in)
• ? Hands-free ? setting with speed adjustment
• 3 sets of rolls provide excellent seaming regularity
• Anti-corrosion-coated steel rolls
• Safety ring to keep the tool from falling

SRLT12-D FEATURES

1st Fold Capacity:

• Zinc / Copper / Aluminum (mm) 0.8
• Steel (mm) 0.7

2nd Fold Capacity:

• Zinc / Copper / Aluminum (mm) 0.7
• Steel (mm) 0.6

DETAILS:

• Minimum radius arch-folded roofing: 3000 mm
• Average seaming speed: 50 m/min
• Overall dimensions (l x w x h)without screw gun / mount folded in: 332 x 244 x 115 mm
• Overall dimensions with screw gun (l x w x h): 367 x 244 x 210 mm
• Net weight, without screw gun: 5.5kg
• Operating temperature when seaming zinc, the temperature of the metal must be at least 10 ?C

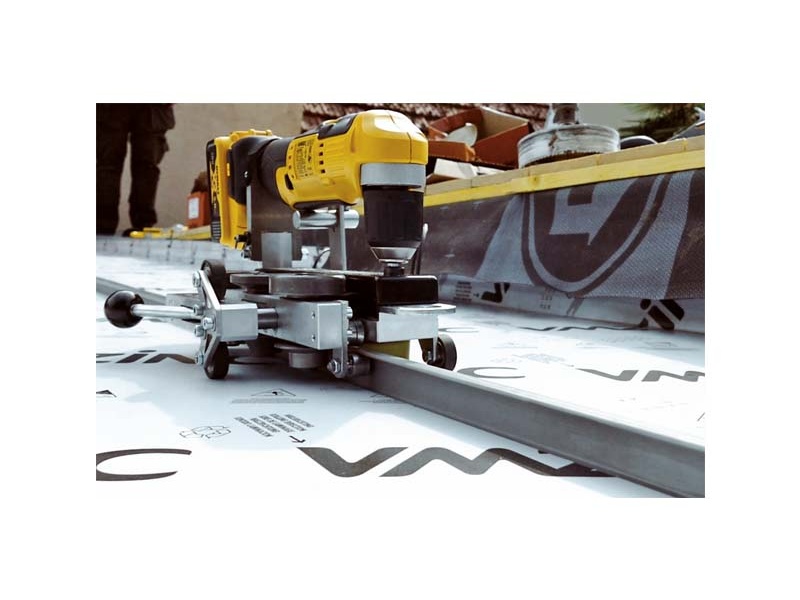

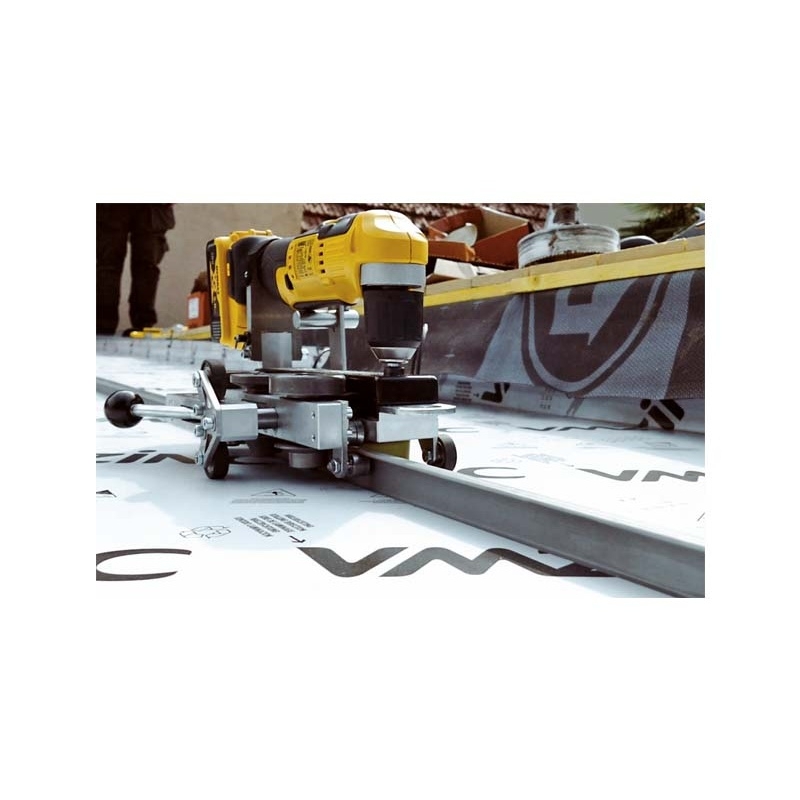

IMPORTANT: THIS UNITE CAN ONLY BE USED WITH A DeWalt right angle drill/driver – DeWalt NOT INCLUDED

TRAY PROFILES:

The quality of the profiled trays used is essential for the proper operation of your seamer.
Before starting to seam, check the following:

• Maximum outside radius: 3.5mm, check with the gauge provided
• The folds must be 9mm +/- 1mm

Note 1: Failure to follow these instructions can seriously damage the electric motor of the machine!

Note 2: Please check for stock level or?lead time with us before placing an order EMAIL US
